Quantum Storage Solutions
Low-cost, secure tape storage for long-term archive and cyber protection.
We provide Quantum storage solutions for long-term archive, backup and cyber protection.
Quantum: more than 45 years in data storage, listed on Nasdaq (QMCO).
What a Quantum tape tier is designed to achieve, from the Scalar and LTO datasheets.
LTO tape is a low-cost home for data you must keep for years. Quantum states that at PB scale it costs a fraction of public cloud and other cold storage.
Active Vault moves tapes to an offline partition. Ransom Block (i3 and i6) adds a physical barrier between sequestered tapes and the robot.
EDLM scans media in the background and flags suspect tapes. LTO media is rated for up to 30 years of archival life.
Modular libraries and Capacity-on-Demand slot licensing add capacity in steps, from 8 slots (SuperLoader 3) up to 14,100 (Scalar i6000).
iLayer monitors the library, explains problems in plain English and guides repairs. Advanced Reporting and a REST API automate routine work.
AES 256-bit encryption, FIPS 140-2 Level 1 validated key management and WORM cartridges support retention and privacy requirements.
Plus an offsite cloud copy for DR. This is the 3-2-1-1 rule: 3 copies, 2 media types, 1 offsite (cloud), 1 offline (on-prem tape).
Libraries, drives, media and options from Quantum. Key specifications only; see the datasheets for full details.

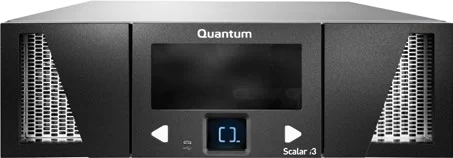

Tape library
Rack-mount modular library that grows in 3U steps.
Also not available on i3: EDLM and data path failover.

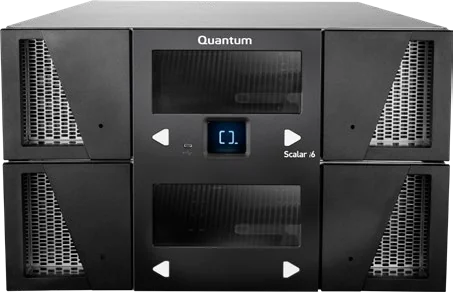

Tape library
Higher-density rack library with full-height drives, growing in 6U steps.

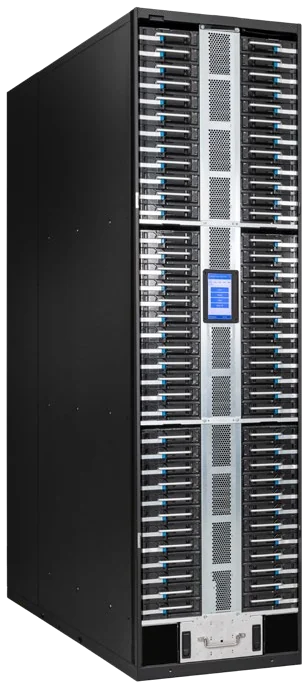

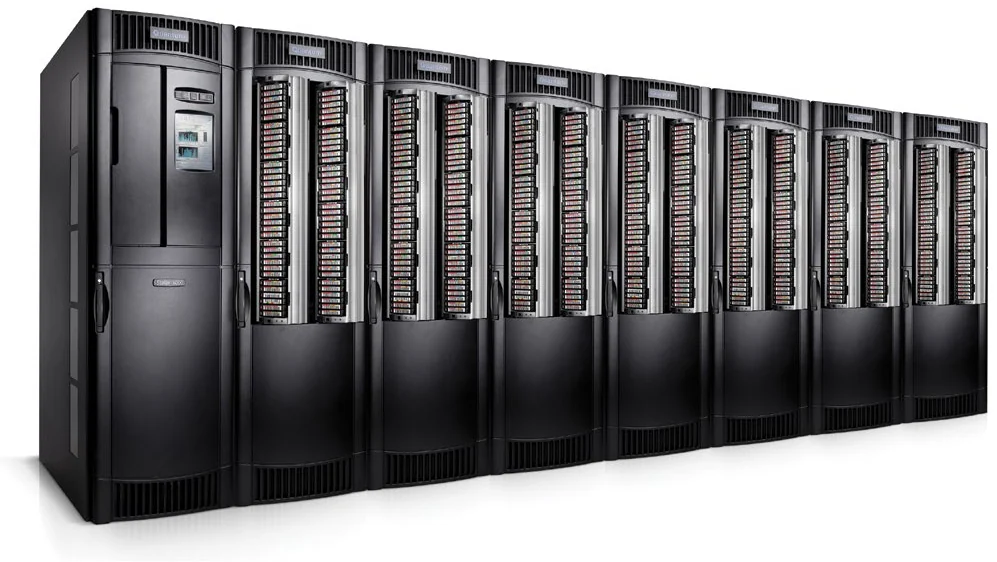

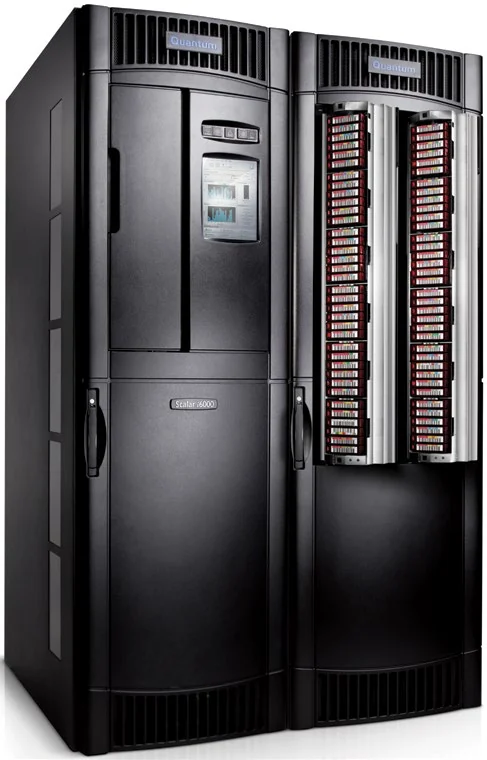

Tape library
Ultra-high-density, free-standing library in a 19-inch rack footprint.
¹ Larger configurations are available with qualification from Quantum.
Tape library
Single-cabinet library that scales by adding magazines.

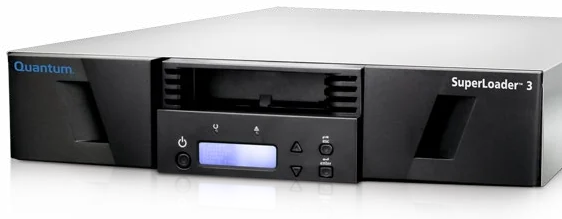

Tape autoloader
Entry-level 2U automated tape storage for small sites and remote offices.
² LTO-9 with 2.5:1 compression and DATASTOR Shield deduplication. DATASTOR Shield backup software is included (Windows only).

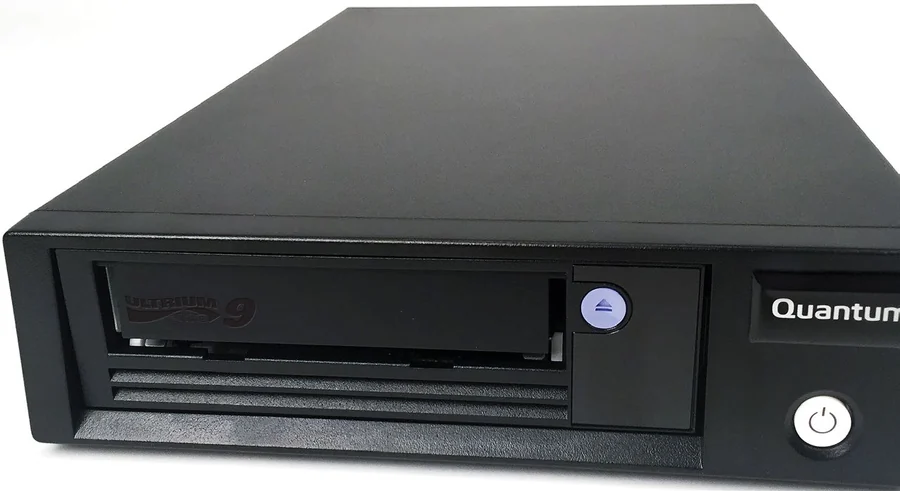

Drives
Half-height LTO drives for small IT environments, in three form factors.
3-year limited rapid-exchange warranty. DATASTOR Shield backup software is included.

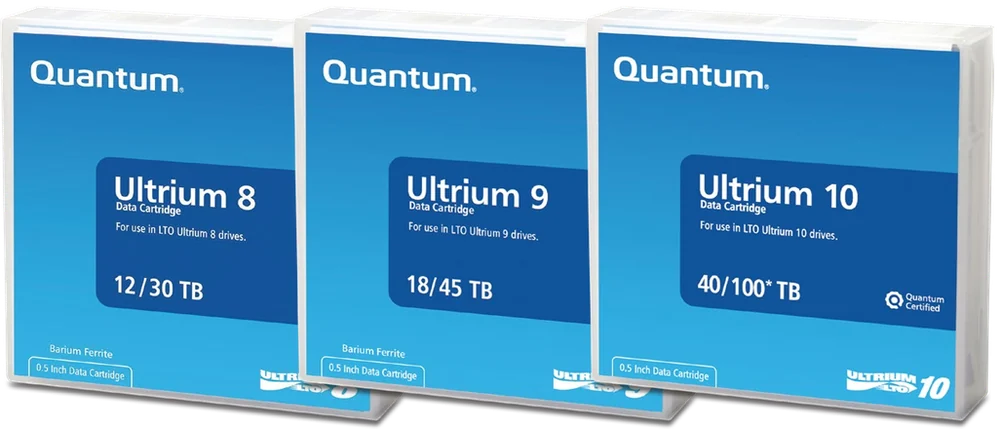

Media
Quantum-branded LTO cartridges from LTO-7 to LTO-10, with WORM and barcode pre-labeling.
³ For LTO-10, WORM is available on the 30 TB cartridge only. Compressed capacity assumes 2.5:1. LTO-10 drives cannot read or write LTO-9 or earlier media.

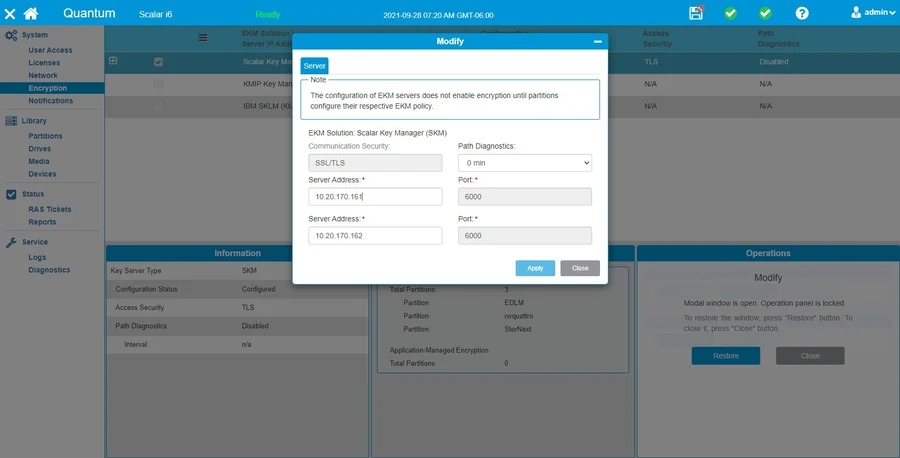

Encryption key management
Centralized encryption key management built into Scalar libraries.
Drive support: i3 with LTO-7/8/9; i6, i6000 and i7 RAPTOR with LTO-7/8/9/10. Each VM needs 4 GB RAM and 16 GB disk.

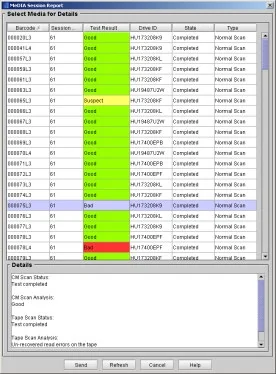

Data integrity option
Extended Data Life Management: policy-based media health checks that run in the background.
⁴ Full scan time is for a full LTO-10 (30 TB) tape and shrinks with less data. EDLM is an optional licensed feature.

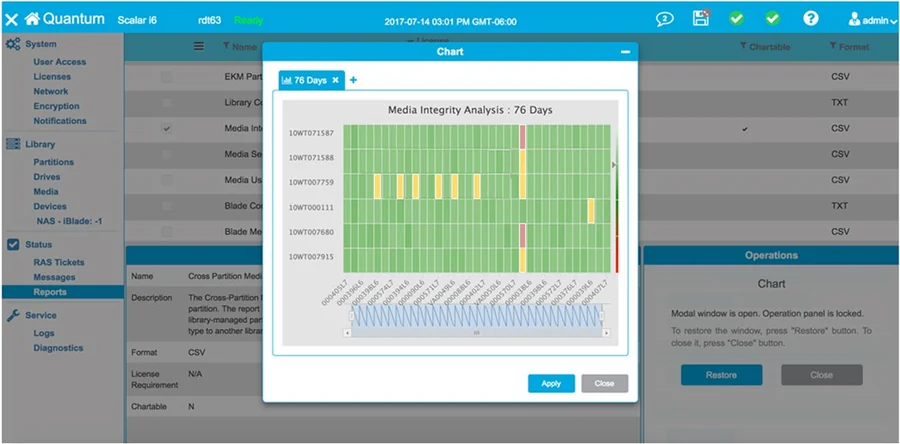

Management option
Trend reports built from the library's own media and drive history.

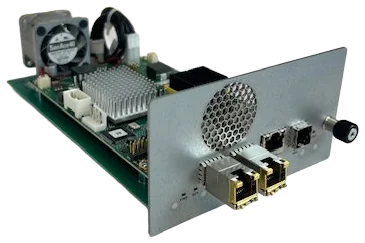

Connectivity option
Connects SAS tape drives to Ethernet networks over iSCSI.
⁵ Per the Quantum datasheet. Requires the 440 W power supply in the module; the 315 W supply is not supported.
Joint solution
Joint backup and archive platform for mainframe and open systems, with Scalar LTO libraries at the back end.
ETERNUS CS8000 is a product of Fsas Technologies. Figures are from the Quantum and Fsas solution brief SB00114A. Capacity is Base10.
Capacities are native (raw) unless stated. Compressed figures assume 2.5:1 compression and deduplicated figures 20:1 (typical), so real results depend on your data.
Scalar i3, i6, i6000 and i7 RAPTOR side by side.
| Feature | Scalar i3 | Scalar i6 | Scalar i6000 | Scalar i7 RAPTOR |
|---|---|---|---|---|
| Slots | 25 – 800 | 50 – 800 | 100 – 14,100* | 100 – 2,016 |
| Drives | 1 – 24 (Half-Height) | 1 – 24 (Full-Height) | 1 – 192 (Full-Height) | 1 – 20 (Full-Height) |
| Capacity, LTO-10 (40 TB), native | N/A | 2,000 – 32,000 TB | 4,000 – 564,000 TB | 4,000 – 80,640 TB |
| Capacity, LTO-9, native | 450 – 14,400 TB | 900 – 14,400 TB | 1,800 – 253,800 TB | 1,800 – 36,288 TB |
| Form factor | Rackmount, 3U modules (up to 16) | Rackmount, 6U modules (up to 8) | Free-standing, up to 20 racks | Free-standing, one full rack |
| Drive interfaces | 8 Gb FC · 6/12 Gb SAS | 8 Gb FC · 6/12 Gb SAS | 8/32 Gb FC (LTO-10) · 12 Gb SAS (LTO-9/10) | 8/32 Gb FC (LTO-10) · 12 Gb SAS (LTO-9/10) |
| MTTR | 30 min | 30 min | 20 min (10 min for dual robot) | ≤ 5 min |
| MSBF | > 2 million | > 2 million | > 3 million | > 3 million |
| Dual robots | No | No | Yes (Active/Active) | No |
| Ransom Block | Yes | Yes | N/A | N/A |
| EDLM | N/A | Yes (optional license) | Yes (optional license) | Yes (optional license) |
| iSCSI Bridge | Yes | Yes | N/A | N/A |
Source: Scalar Tape Libraries datasheet DS00559A. Capacity ranges are native (raw). * Larger configurations are available with qualification from Quantum. LTO-10 drives cannot read or write LTO-9 or earlier media.
Contact us for configuration advice and a quotation.
Sources (reviewed 2026-09-24): Quantum datasheets DS00559A-v14 (Scalar Tape Libraries), DS00379A-v24 (SuperLoader 3), DS00457A-v13 (LTO Tape Drives), DS00383A-v13 (LTO Ultrium), DS00406A-v13 (Scalar Key Manager), DS00513A-v03 (Scalar EDLM), DS00434A-v04 (Scalar Advanced Reporting), DS00572A-v03 (Scalar iSCSI Bridge); solution brief SB00114A-v04 (Fsas ETERNUS CS8000 and Quantum Scalar). Model page details from quantum.com. Specifications may change; always check the current Quantum datasheet.
Definitions: LTO = Linear Tape-Open. WORM = Write Once, Read Many. EDLM = Extended Data Life Management. MTTR = mean time to repair. MSBF = mean swaps between failures. CoD = Capacity-on-Demand. HH/FH = Half-Height/Full-Height drive. FC = Fibre Channel. SAS = Serial Attached SCSI. HA = high availability.
